Freeze Dryer LEO-010L

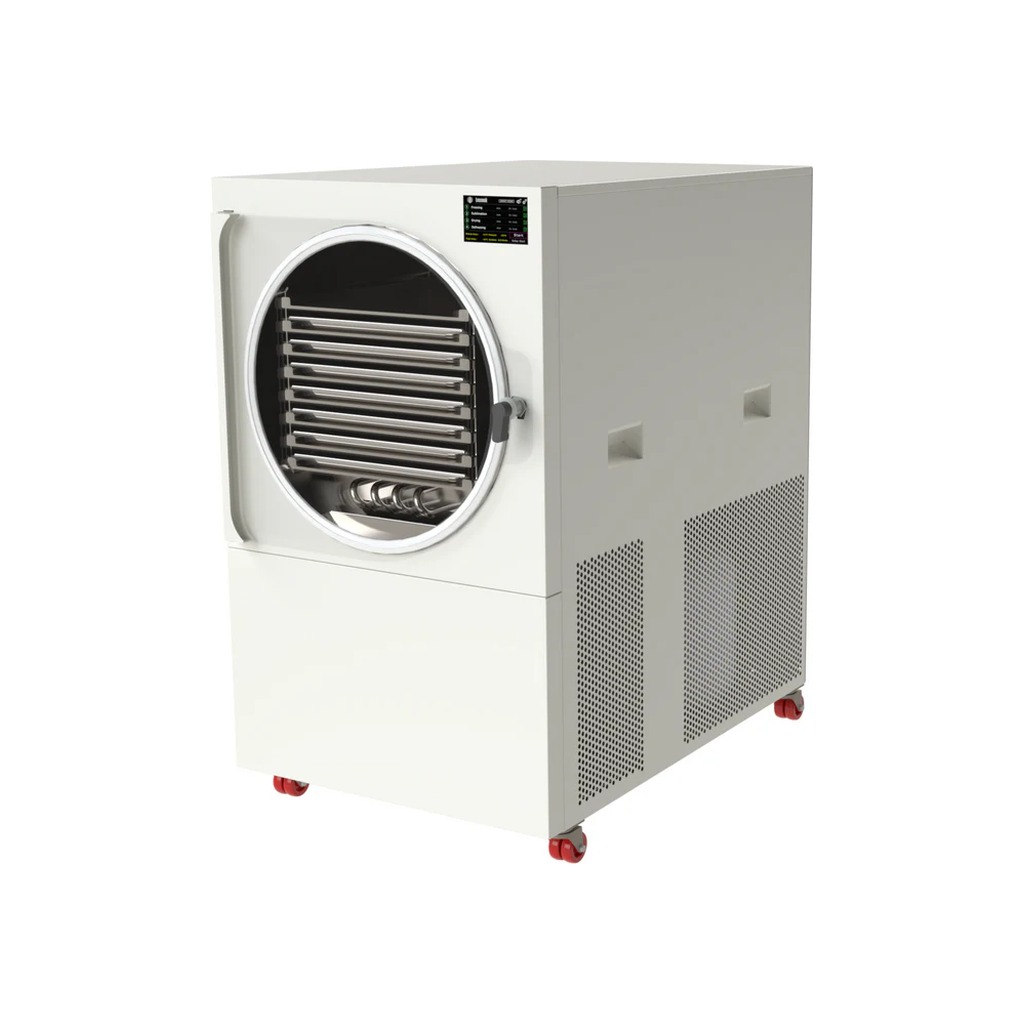

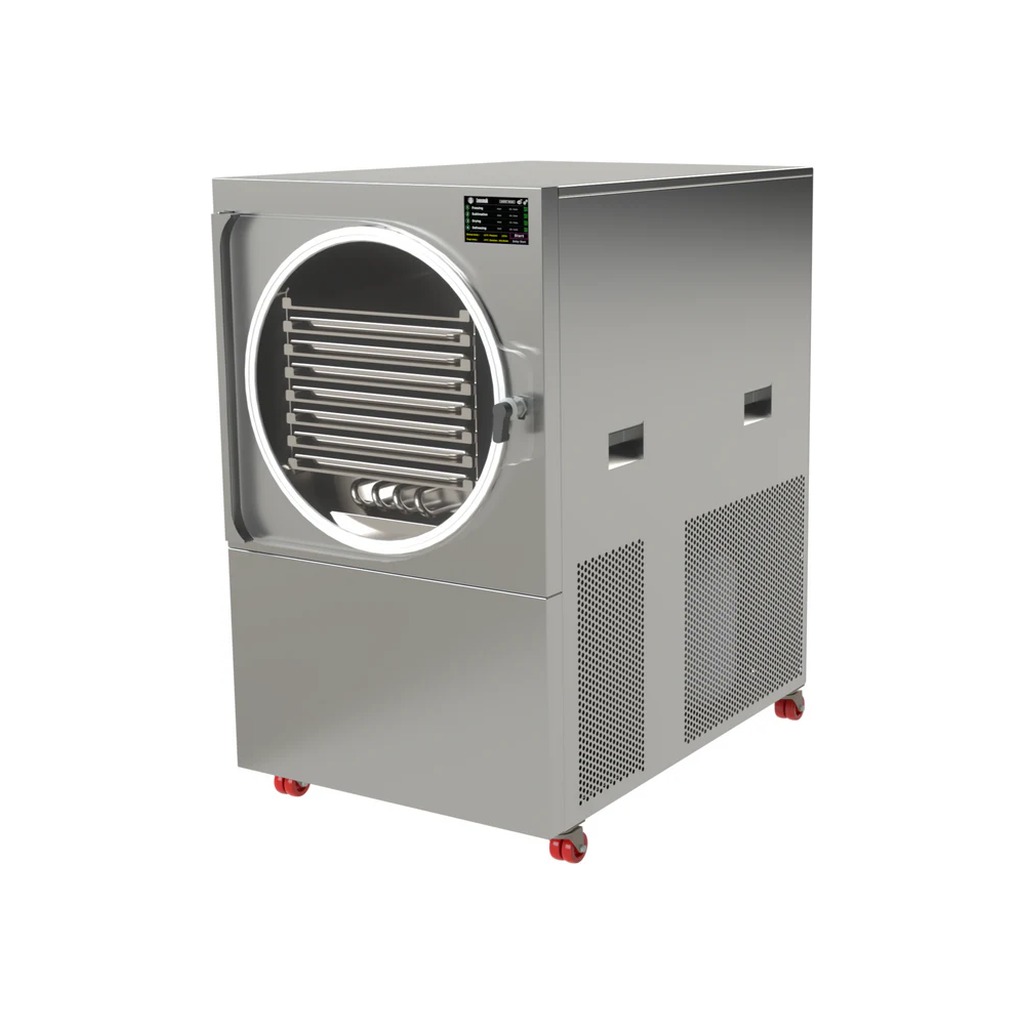

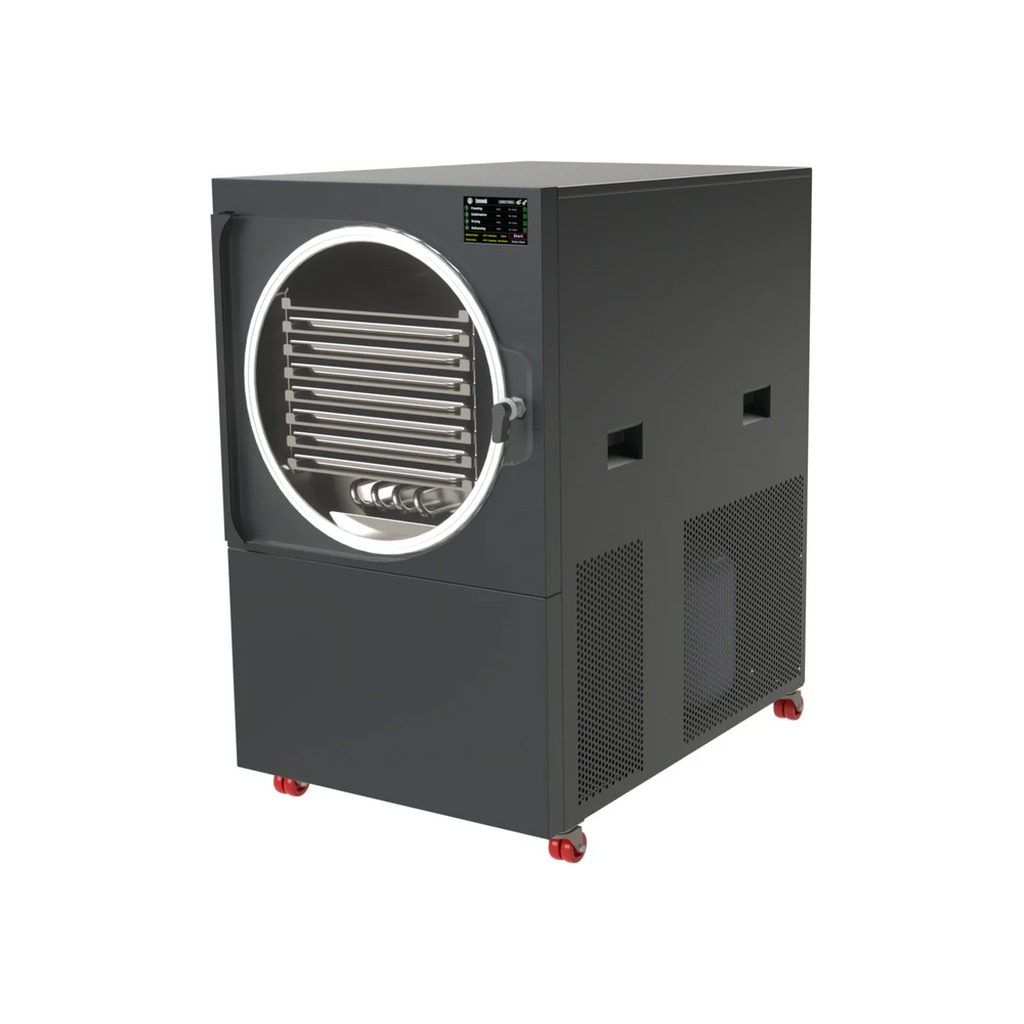

Leosmak LEO-010L Standard Freeze Dryer (Compact Line)

A professional standard freeze dryer from the Compact Line, designed for medium-sized and larger food production facilities, farms, confectioneries and product development laboratories. The unit is suitable for freeze-drying fruit, berries, vegetables, meat, ready meals and sweets while preserving their natural taste, structure and nutritional value.

Maximum Preservation of Product Quality
The freeze-drying process removes moisture under vacuum at low temperatures, helping preserve the product’s original properties and significantly extend its shelf life without the use of preservatives.

Simple and Automated Operation
The unit automatically controls the freezing, sublimation and drying cycles. Operation is managed via an LCD touchscreen or manually, and remote control is also available through a mobile app and Wi-Fi connection.

Main Advantages

• 100% stainless steel chamber and shelves, with no electrical components inside the chamber.
• Integrated premium vacuum pump with an all-in-one design.
• Reduced need for vacuum pump oil changes.
• Increased capacity – up to 15 kg per cycle.
• 7 shelves for GN 1/1 trays, 20 mm deep.
• 28 mm distance between shelves.
• Radiant freezing and heating through the shelves.
• Fully automatic operating cycle.
• Delayed start function.
• “Sweet Mode” for freeze-drying sweets and confectionery, with preheating up to +70 °C.
• Protection against short-term power interruptions.
• Quiet operation – approximately 60 dB.
• Environmentally friendly technology using a low-GWP refrigerant.

Capacity and Performance

• Product load per cycle: up to 15 kg of fresh product.
• 7 stainless steel shelves.
• 7 GN 1/1 trays.
• Total shelf area: 1.30 m².
• Operating temperature range: -25…+70 °C.

Compact Dimensions
Despite its high capacity, the unit retains a compact design and is suitable for installation in medium-sized and larger production facilities.

Included Equipment

• Leosmak LEO-010L standard freeze dryer (Compact Line).
• Integrated premium vacuum pump.
• LCD touchscreen control panel.

The unit is manufactured in Europe and provides a professional, energy-efficient and fully automated freeze-drying process for a wide range of food products.
